My adaptation of a garage
door opener to raise and lower my millhead.
|

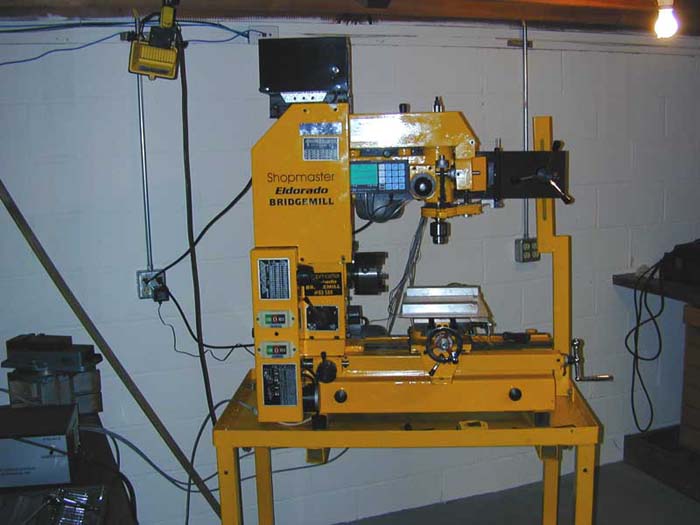

Last page. The mill head can be raised or lowered fully in 32 seconds! To me that is just awesome. I just have to take precautions to unlock the lock down and watch how far I raise and lower. As I get some other things done, I may add limit switches just to be safe.
The stuff you see on the mill table is a pad of paper and some aluminum blocks for weight. Couple of nights ago, I did my first cnc programming and drawing. I chucked up a ball point pen in the mill head/drill chuck and proceeded to draw. I was brain fried at the end of the night, but I got the machine to do something. Next, a block of wood!
My CAD/CAM is BobCAD 17.0
Mach1controller software
Camtronics controller with 700 oz in motors
I have plenty of things to do yet to really ready this machine, but sometimes you just get side tracked on other projects. I think this one was well worth it.
Thanks for reading.
